Echo Master 7" 4-Channel Split-Screen Backup Monitor

Echo Master 7" 4-Channel Split-Screen Backup Monitor.

-- Uses 4-Pin Generic (Zone-Defense Type) Camera Connectors

-- Monitor Dimensions: 7-1/16"W x 4-3/4"H x 1"D

--Flush-Mount Overall Dimensions: 8"W x 5-5/8"H x 1"D

--Flush-Mount Cutout Dimensions: 7-5/16"W x 5"H

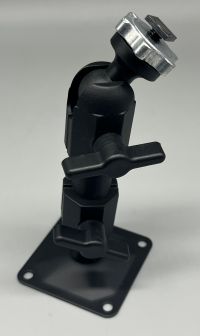

--NO PEDESTAL BRACKET INCLUDED –Use PV-627-06

This monitor has been found to be a suitable replacement for various Zone Defense 7” monitors – including the ZD-M-302. Please carefully compare the dimensions above to make sure that it will fit in place of the original. YOU MUST SWAP THE MAIN MONITOR HARNESSES:  Do not attempt to used the Zone Defense harness with this monitor. After swapping the main harnesses, the existing Zone Defense cameras and their 4-pin cables will connect to the new monitor.
